Automatic Flow Limiting (1/2″ – 2″) | Submittals | Flow Chart | |

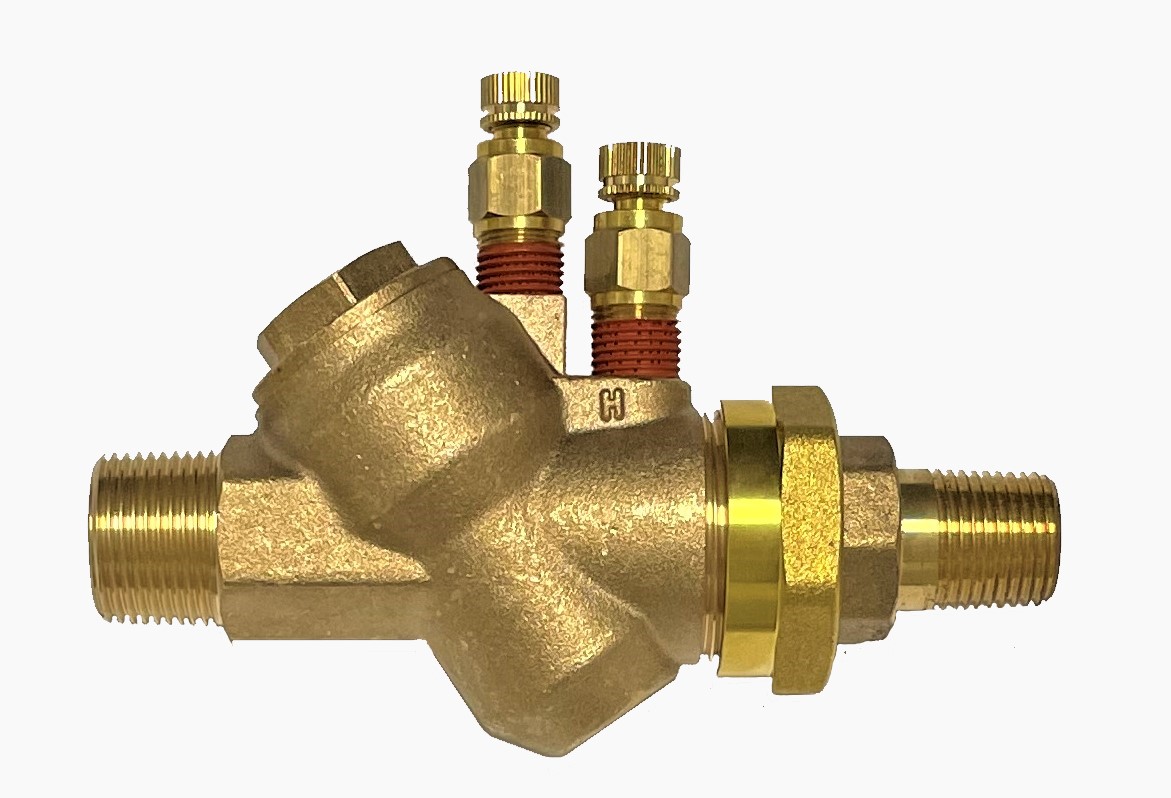

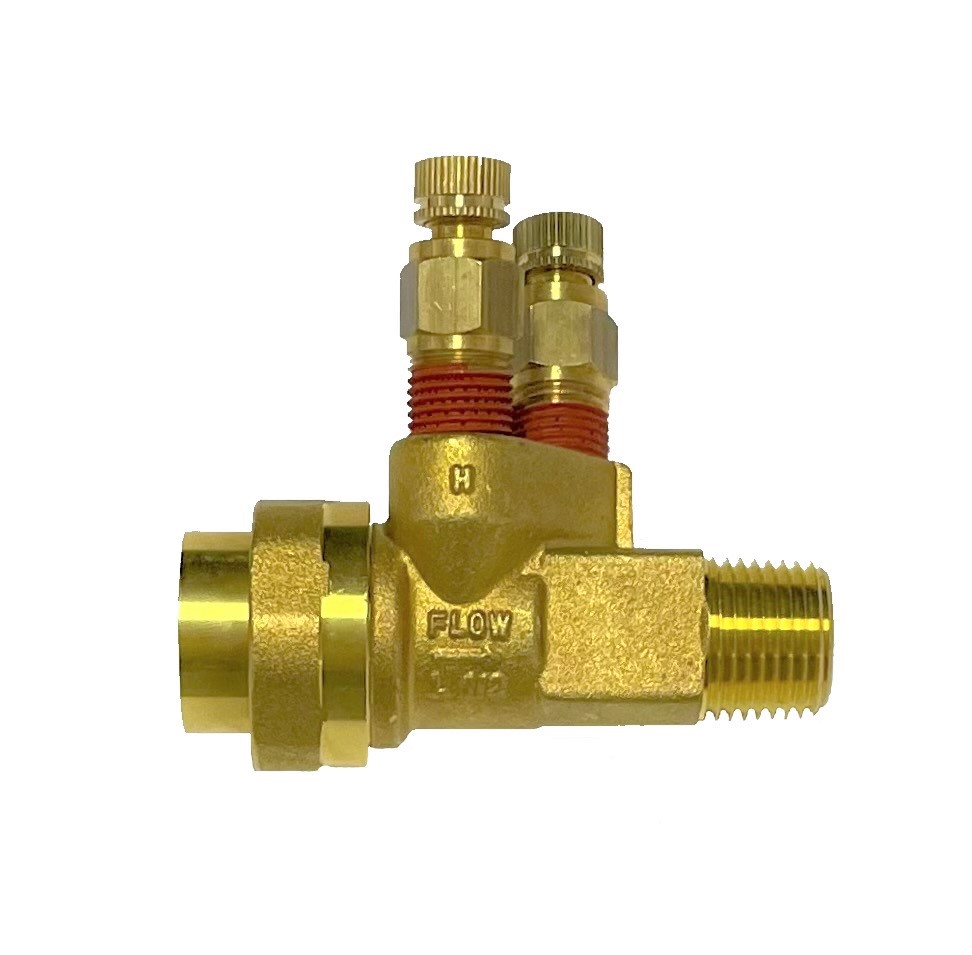

AFLD Series
| The AFLD is an Automatic Pressure Independent Flow Limiting device, male ended by union, rated at 600 WOG / CWP. The AFLD is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLD comes standard with two pressure/temperature ports and a hanging ID tag for easy identification. 2 – 60+ PSID | ||

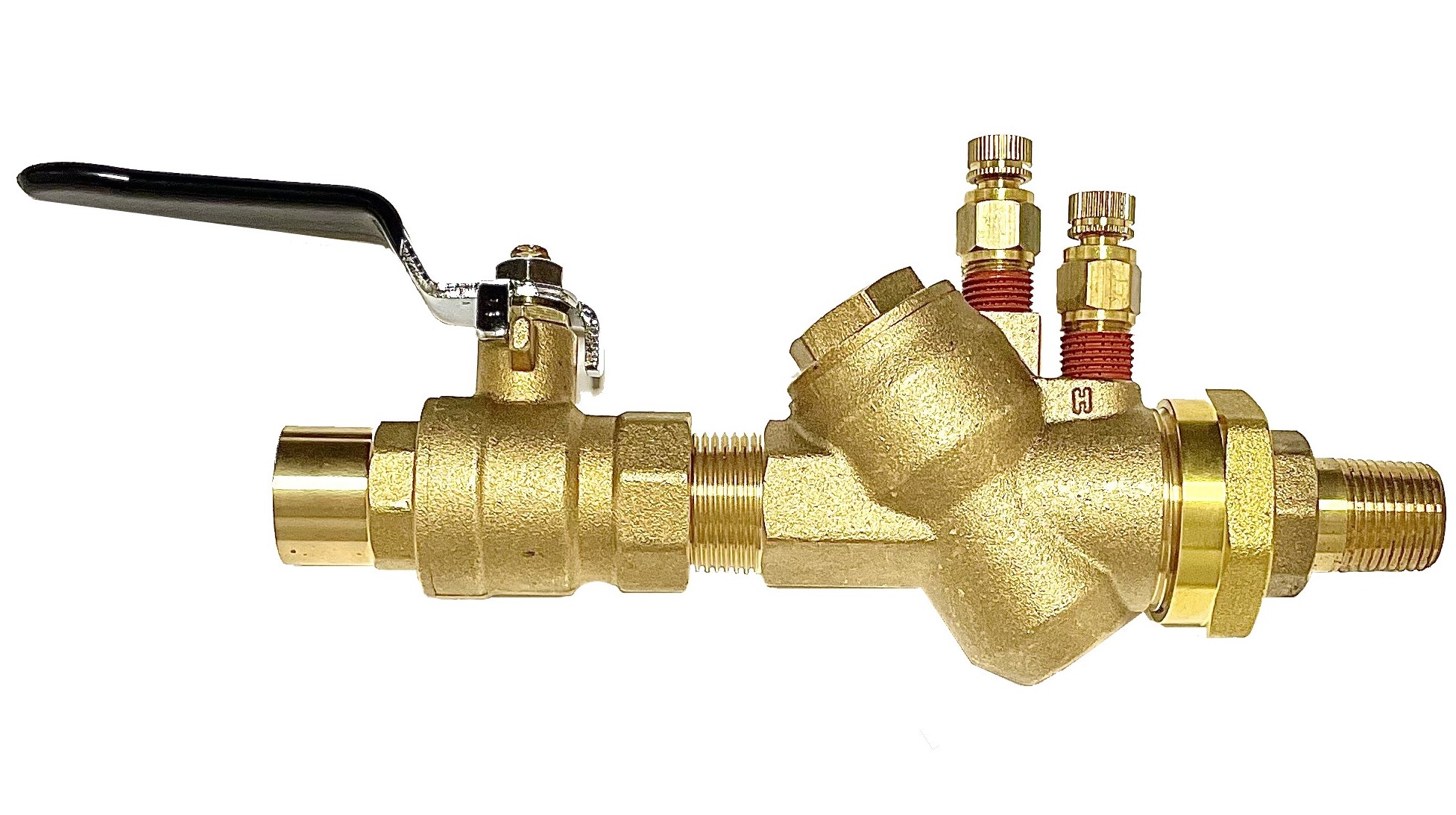

AFLB Series
| The AFLB is an Automatic Pressure Independent Flow Limiting device, male ended by union with a full port ball valve attached, rated at 600 WOG / CWP. The AFLB is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLB comes standard with two pressure/temperature ports and a hanging ID tag for easy identification. 2 – 60+ PSID | ||
AFLI Series
| The AFLI is an Automatic Pressure Independent Flow Limiting device, union by fixed end, rated at 600 WOG / CWP. The AFLI is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLI comes standard with two pressure/temperature ports and a hanging ID tag for easy identification. 2 – 60+ PSID. | ||

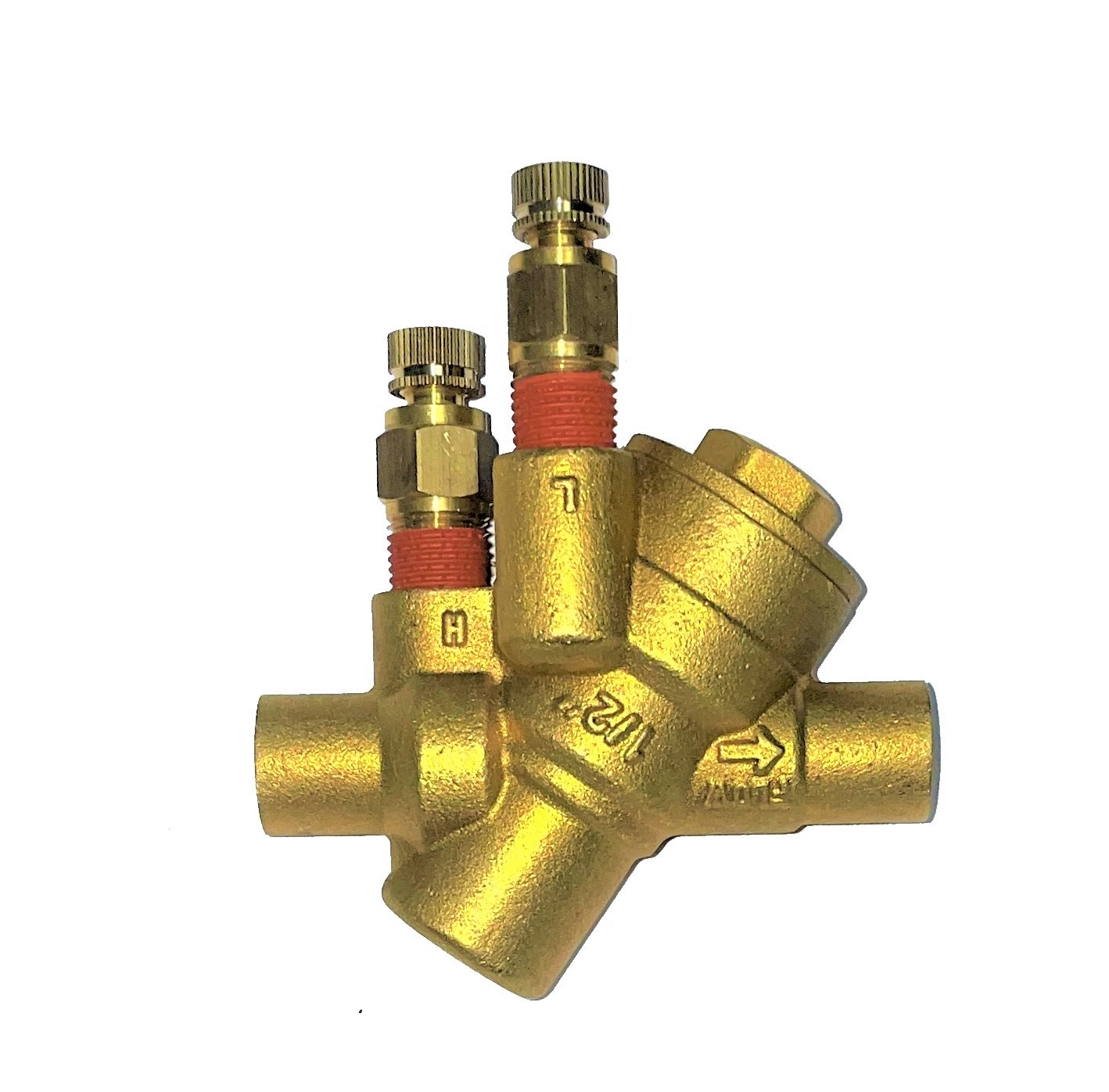

AFLM Series
| The AFLM is an Automatic Pressure Independent Flow Limiting device, union by fixed end, rated at 600 WOG / CWP. The AFLM is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLM comes in SWT by SWT end connections, upstream and downstream 1/4" ports and 1/4" port in the removeable cap. | ||
Automatic Flow Limiting No Lead Series (1/2″ – 1″) | Submittals | Flow Chart | |
AFLD No Lead Series
| The AFLD No Lead is an Automatic Pressure Independent Flow Limiting device, male ended by union, rated at 600 WOG / CWP. The AFLD is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLD comes standard with two pressure/temperature ports and a hanging ID tag for easy identification. 2 – 60+ PSID | ||
AFLB No Lead Series
| The AFLB No Lead is an Automatic Pressure Independent Flow Limiting device, male ended by union with a full port ball valve attached, rated at 600 WOG / CWP. The AFLB is supplied with a stainless steel flow limiting cartridge that can be removed for cleaning, inspection, and if necessary, cartridge exchange. The AFLB comes standard with two pressure/temperature ports and a hanging ID tag for easy identification. 2 – 60+ PSID | ||
Manual Balancing (1/2″ – 2″) | Submittals | Flow Chart | |

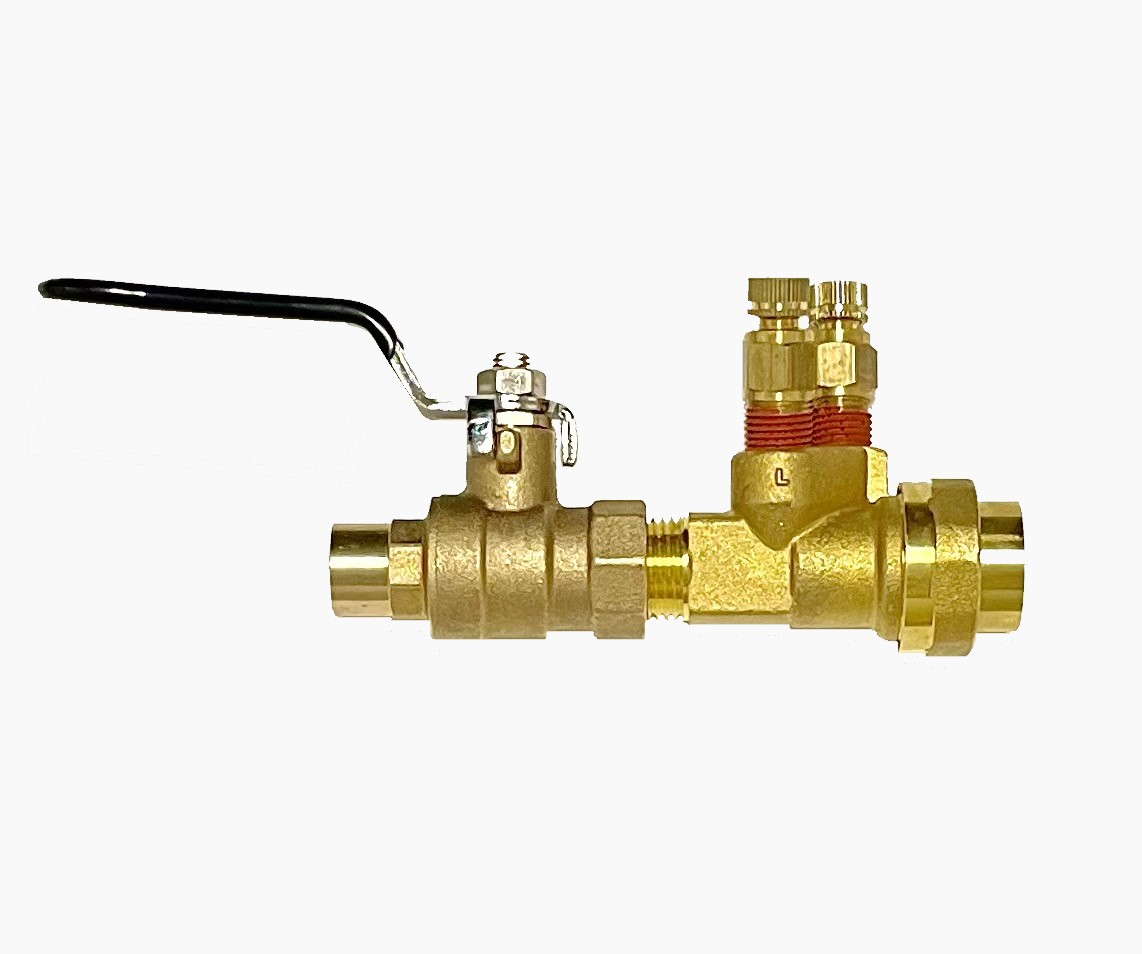

CBV Series
| The CBV combines a fixed end FNPT or SWT end ball valve and brass venturi that provides highly accurate flow measurement. The efficient low loss venturi design provides effective flow balancing with minimal pressure loss. The CBV comes standard with two P/T ports and a ball valve memory stop. The union side connection options include MNPT, FNPT, SWT, and a variety of reductions. | ||
VU Series
| The VU is a flow balancing brass venturi that provides highly accurate flow measurement. The efficient low loss venturi design provides effective flow measuring with minimal pressure loss. The VU comes standard with two pressure/temperature ports for instrument readings. The union side connection options include MNPT, FNPT, SWT, and a variety of reductions.CWP. | ||

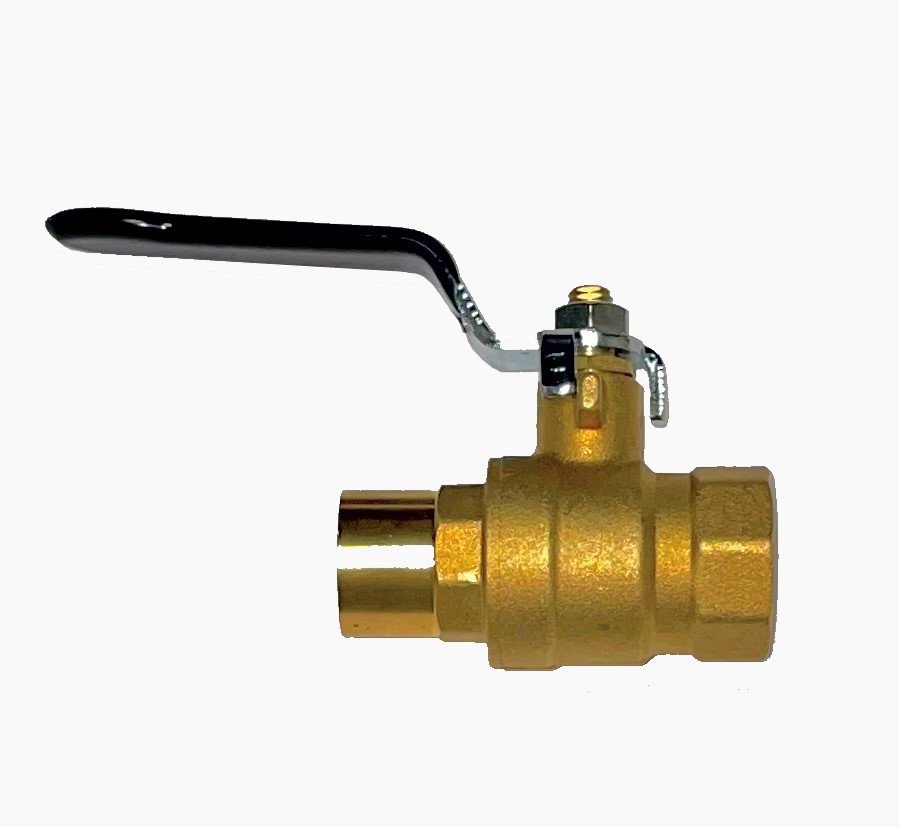

BV Series
| The Model BV is a brass ball valve rated at 600 WOG / CWP. The BV comes standard with a blow-out proof stem, a double o-ring stem seal, and an adjustable stem packing nut. The available end connections for the BV include FPT x FPT, SWT x SWT, and FPT x SWT. Available in full port and standard (reduced) port. | BV Installation and Operation Manual | Not Applicable |
Manual Balancing No Lead Series (1/2″- 1″) | Submittals | Flow Chart | |
CBV No Lead Series | The CBV combines a fixed end FNPT or SWT end ball valve and brass venturi that provides highly accurate flow measurement. The efficient low loss venturi design provides effective flow balancing with minimal pressure loss. The CBV comes standard with two P/T ports and a ball valve memory stop. The union side connection options include MNPT, FNPT, SWT, and a variety of reductions. | ||
Coil Kit Accessories (1/2″ – 1″) | Submittals | Flow Chart | |

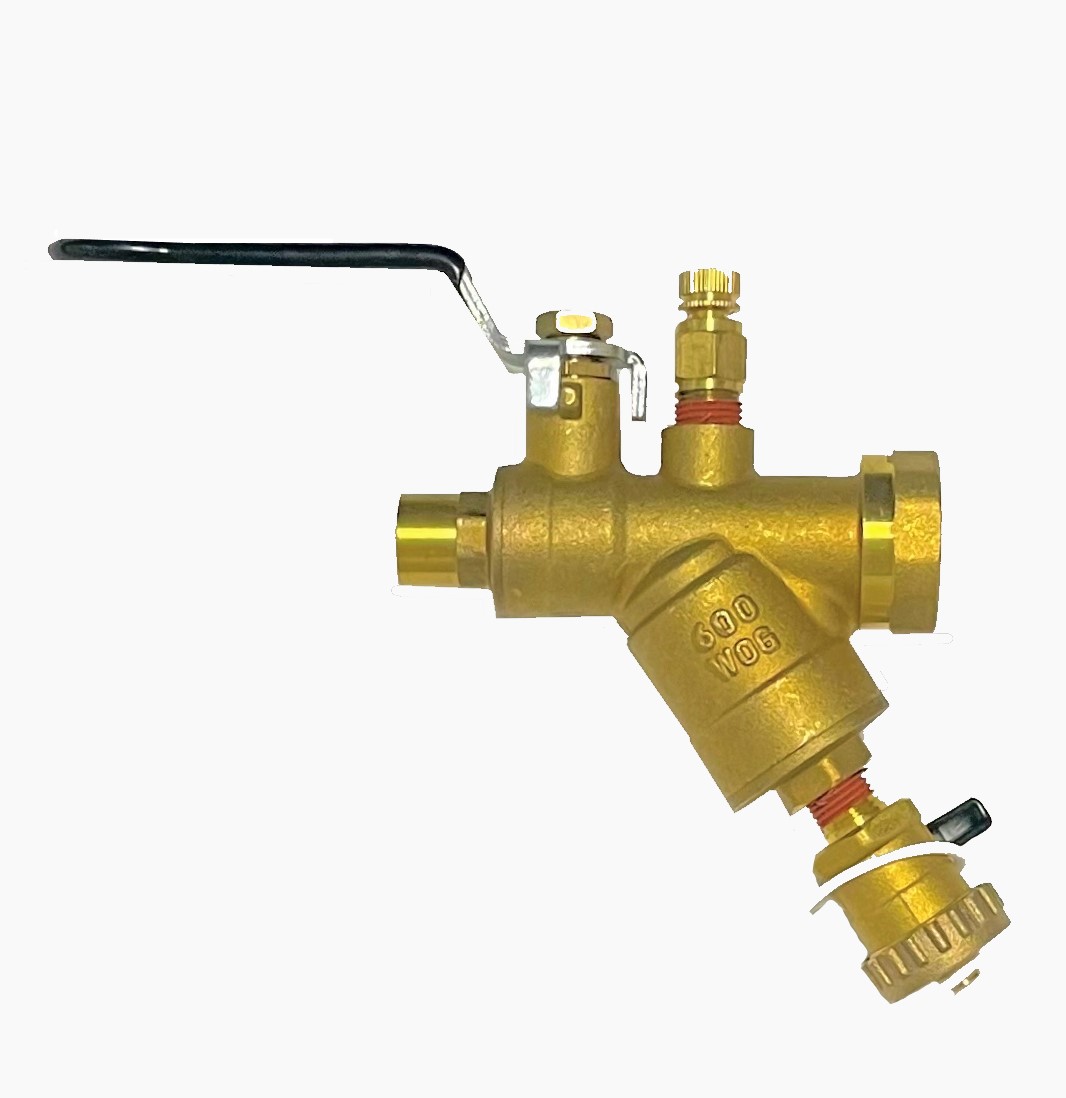

IVS Series
| The IVS is an integral ball valve, wye-strainer, and union. The IVS uses a full-port ball valve for positive shut-off and offers one top predrilled 1/4" tap for accessories to be insalled. The strainer has a 20 mesh stainless steel screen to aid in debris removal. The strainer has a 1/4" tap for a hose-end drain valve. The ball valve has a PTFE packing gland, brass packing nut, and blow-out proof double o-ring stem seal. The fixed end connections may be FNPT or SWT. The union side connections include MNPT, FNPT, SWT, and a variety of reductions. | Not Applicable | |
IYU Series

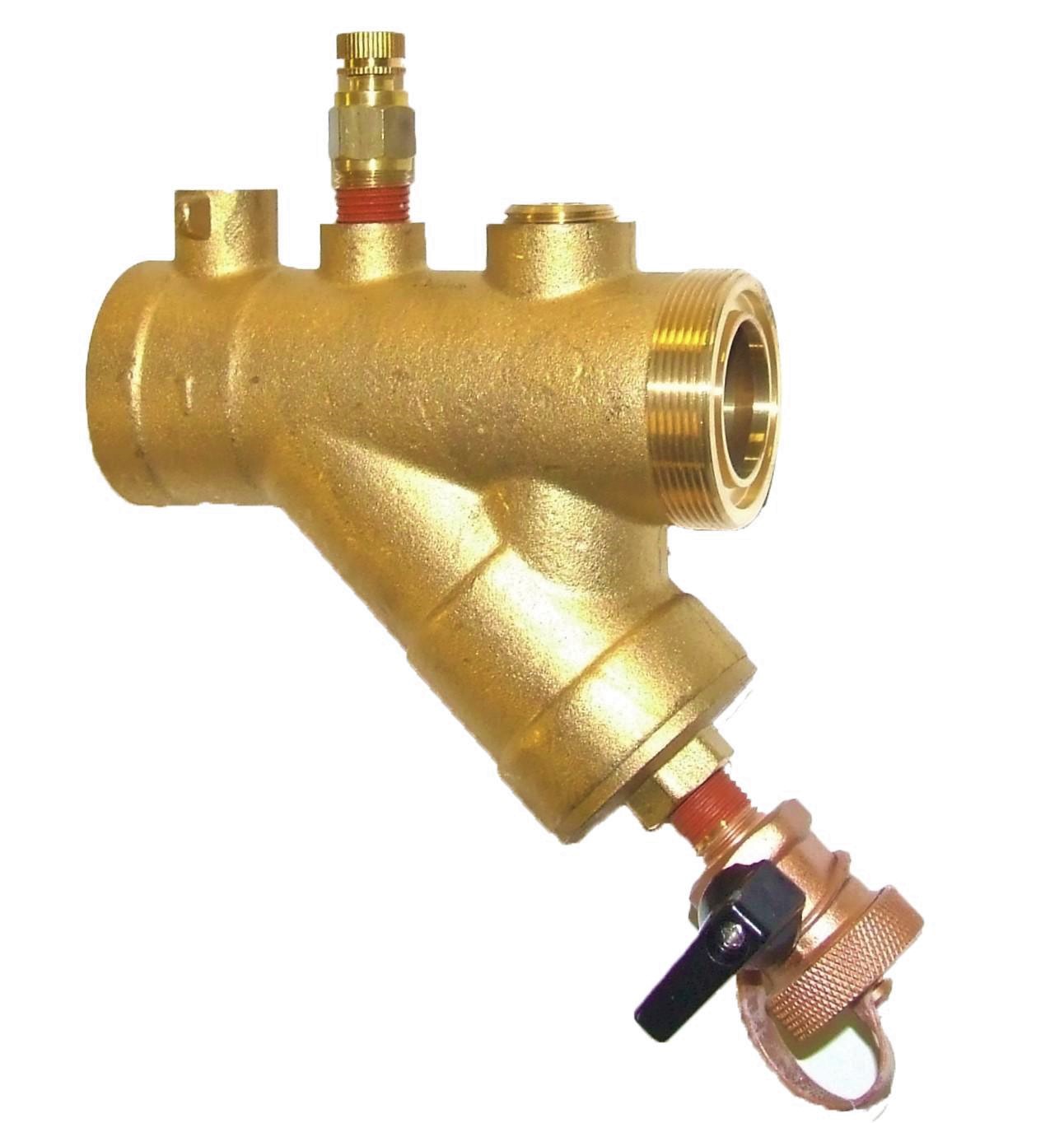

| The IYU is a FNPT x union wye-strainer rated at 600 WOG / CWP. The IYU offers one predrilled 1/4" tap and one 1/2" tap for accessories to be insalled. The strainer has a 20 mesh stainless steel screen to aid in debris removal. The strainer has a 1/4" tap for a hose-end drain valve. The fixed end connection is FNPT. The union side connections include MNPT, FNPT, SWT, and a variety of reductions. | Not Applicable | |
Coil Kit Accessories (1/2″ – 2″) | Submittals | Flow Chart | |

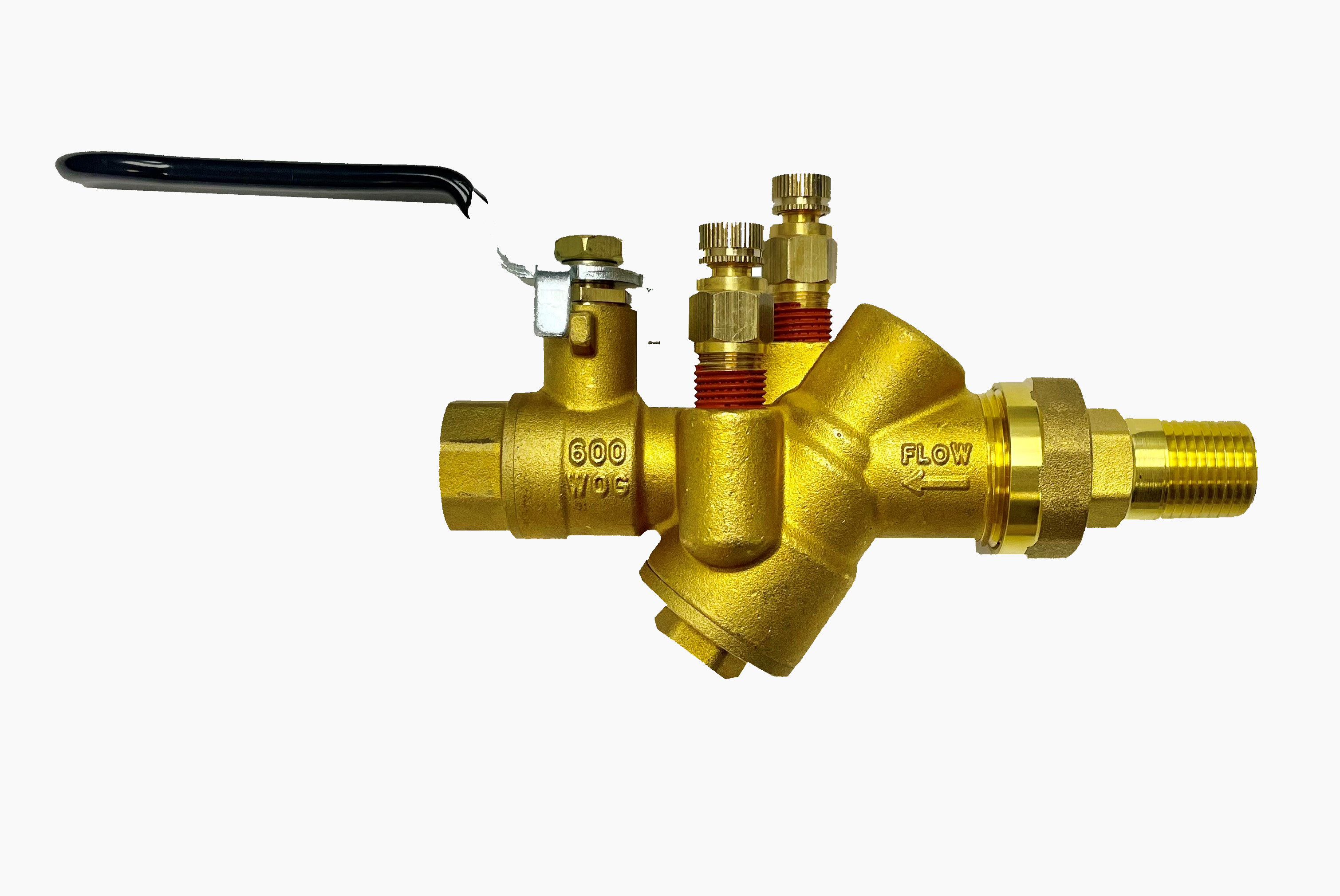

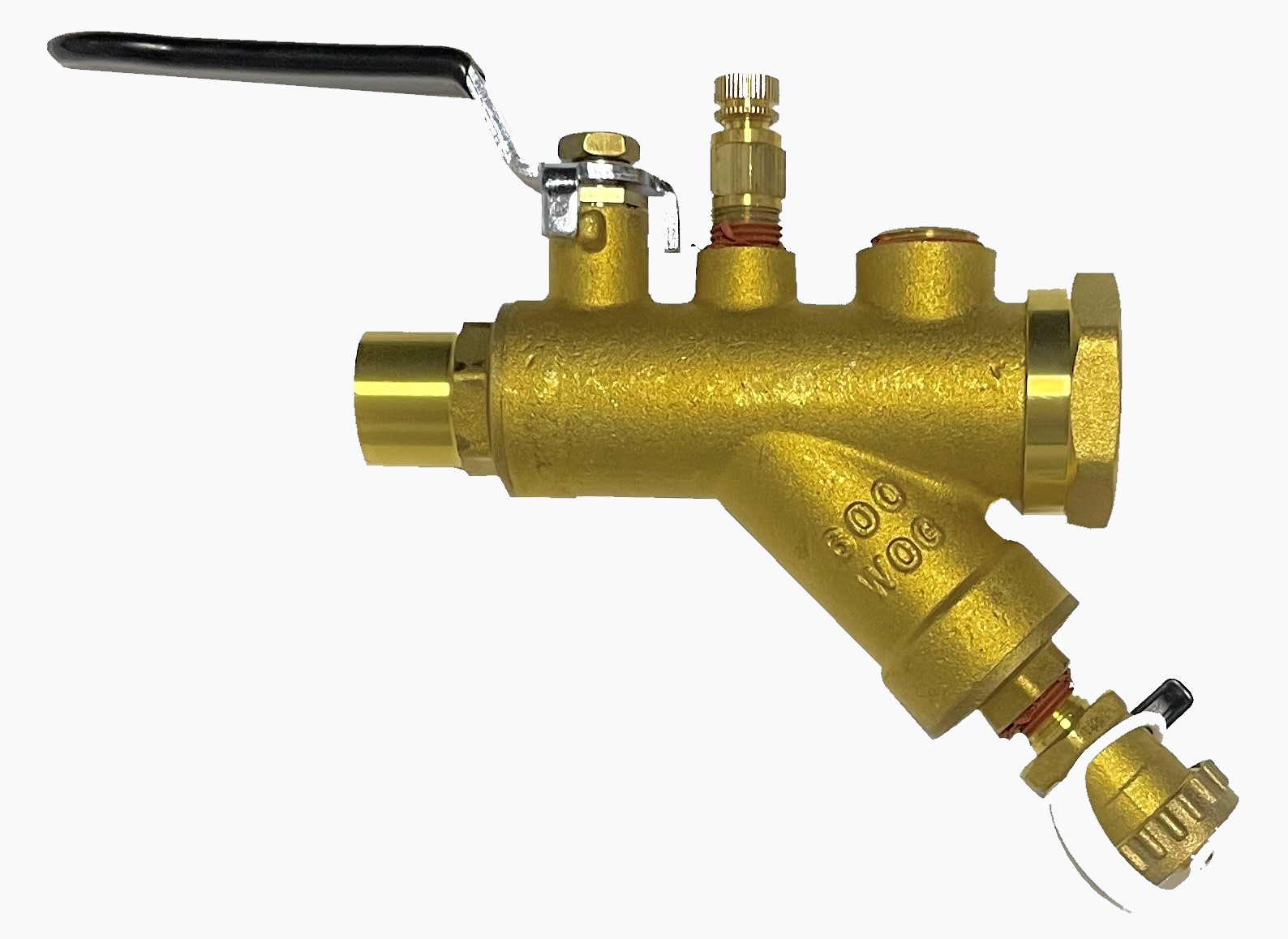

IVY Series
| The IVY is an integral ball valve, wye-strainer and union rated at 600 WOG / CWP. The IVY uses a full-port ball valve for positive shut-off service and offers two ¼” taps for accessories to be installed. A by-pass tap is provided at the forward 12:00 position for the ½” through 2″ models. The strainer cap has a ¼” tap in the blow down section for a hose-end drain with a 20-mesh stainless steel screen. The fixed end connections may be FNPT or SWT. The union side connections available include MNPT, FNPT, SWT, and a variety of reductions. | Not | |

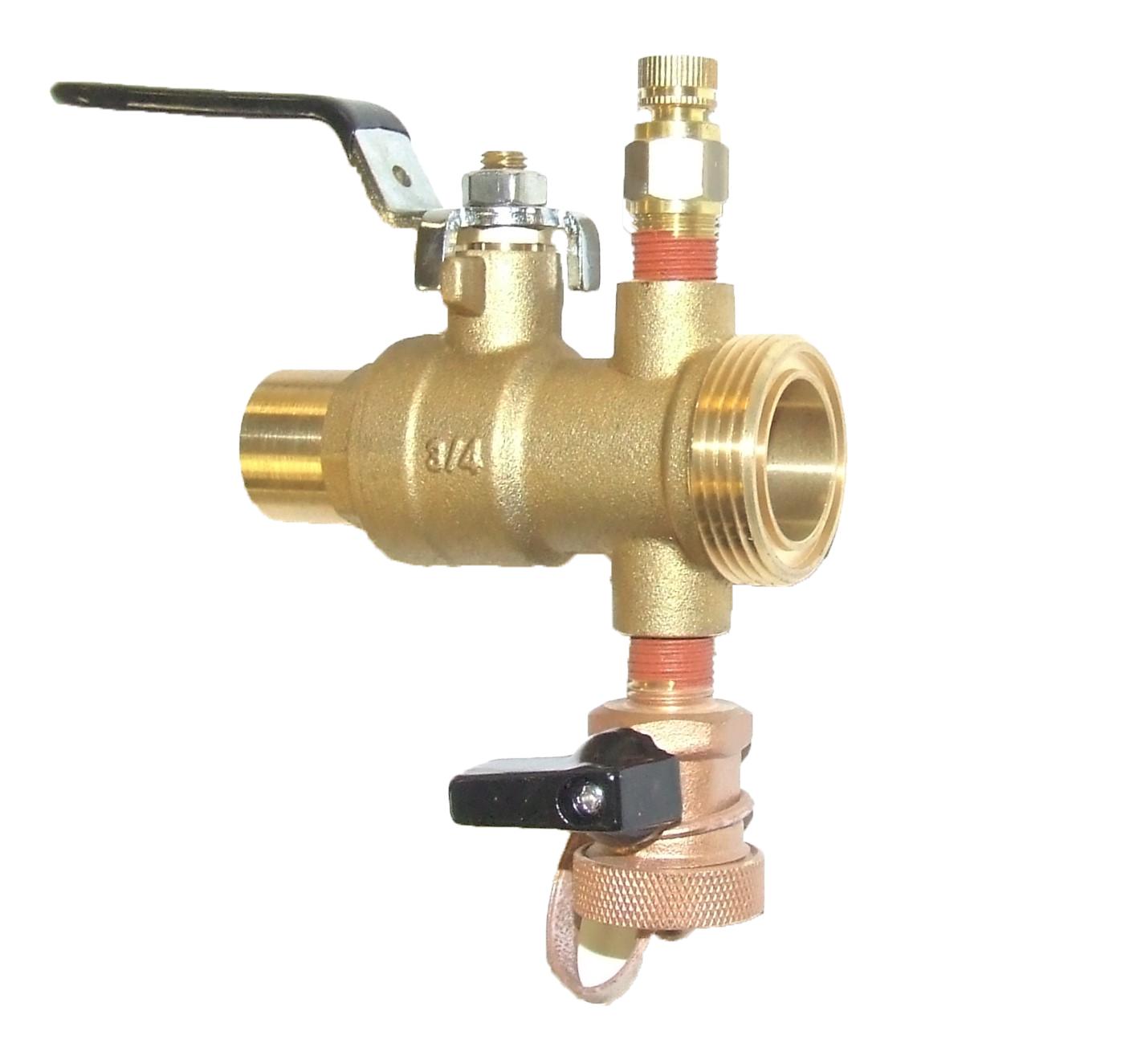

IBU Series
| The IBU is an integral ball valve / union rated at 600 WOG / CWP. The IBU uses a combination full-port ball valve and union which provides three ¼” taps for accessories to be installed. All taps are plugged unless specified. Fixed end connections may be SWT or FNPT. Union side connections available include MNPT, FNPT, and SWT, and a variety of reductions. | Not | |

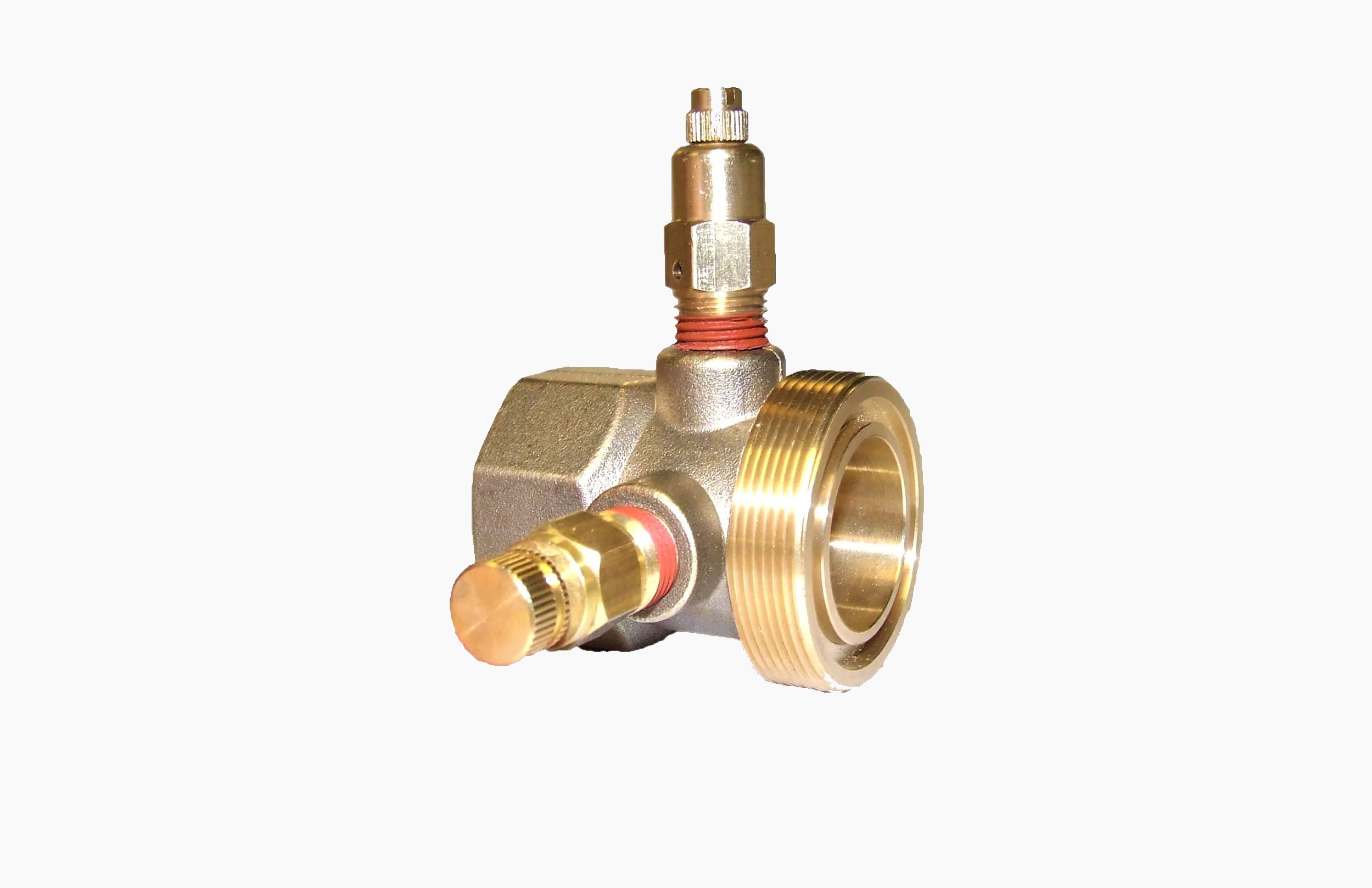

AU Series
| The AU is a brass accessory union that provides for component isolation. The AU body contains two ¼” ports that come predrilled from the factory and are positioned 90° apart. The union side incorporates an o-ring for maximum sealing protection. The AU must have two accessories installed. Union side and port side connections available in MNPT, FNPT, and SWT. Rated at 600 WOG / CWP @ 250° F. | Not | |

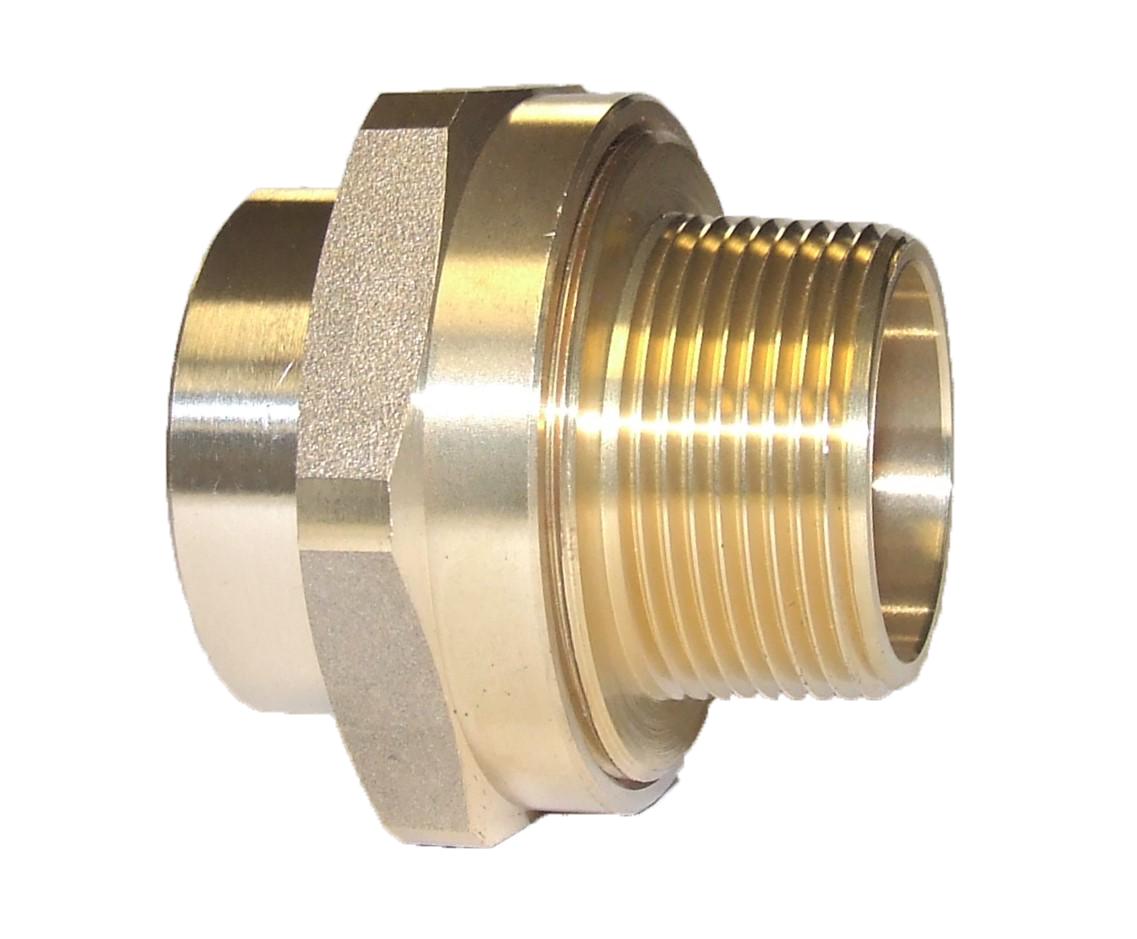

UA Series
| The UA is a brass MNPT x union adapter that connects to FNPT ended products. The UA converts line connections types and offers line size reductions. The union tail pieces are available in FNPT, MNPT, and SWT ends. Refer to the PRO-UA Submittal product selection guide for available reductions. The UA ships as a configured component consisting of the UA body, o-ring, union nut, and tail piece. | Not | |
PT Series
| The Model PT is a pressure/temperature test port that allows for quick connection of pressure and temperature measuring instruments for testing, balancing and troubleshooting hydronic systems. The PT port’s Dual Durometer Core design allows the bottom seal to close and seal the system before the test probe is fully removed. Available in 1/4″ and 1/2″ sizes; regular length or extended for insulation purposes. | Not | |

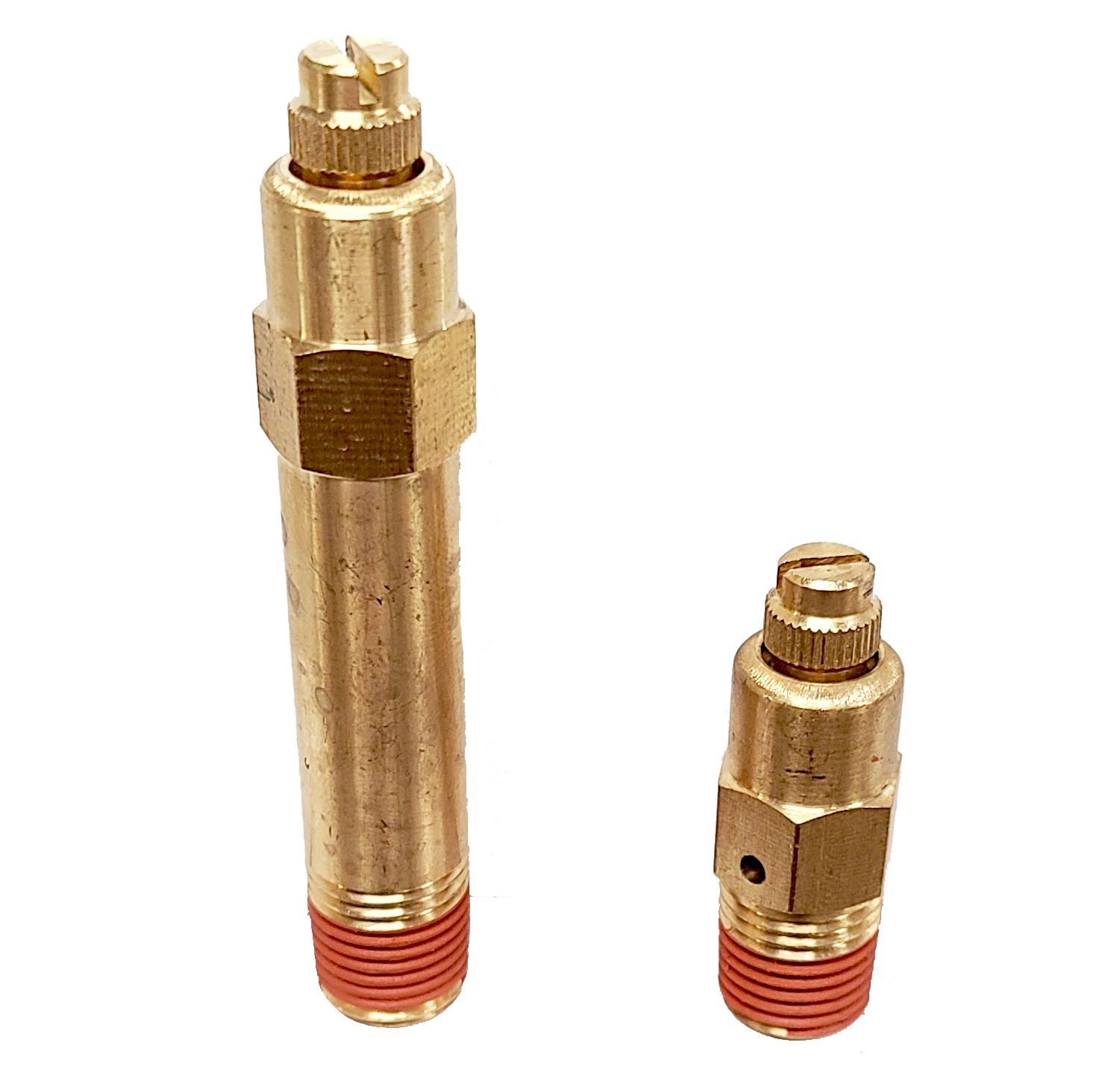

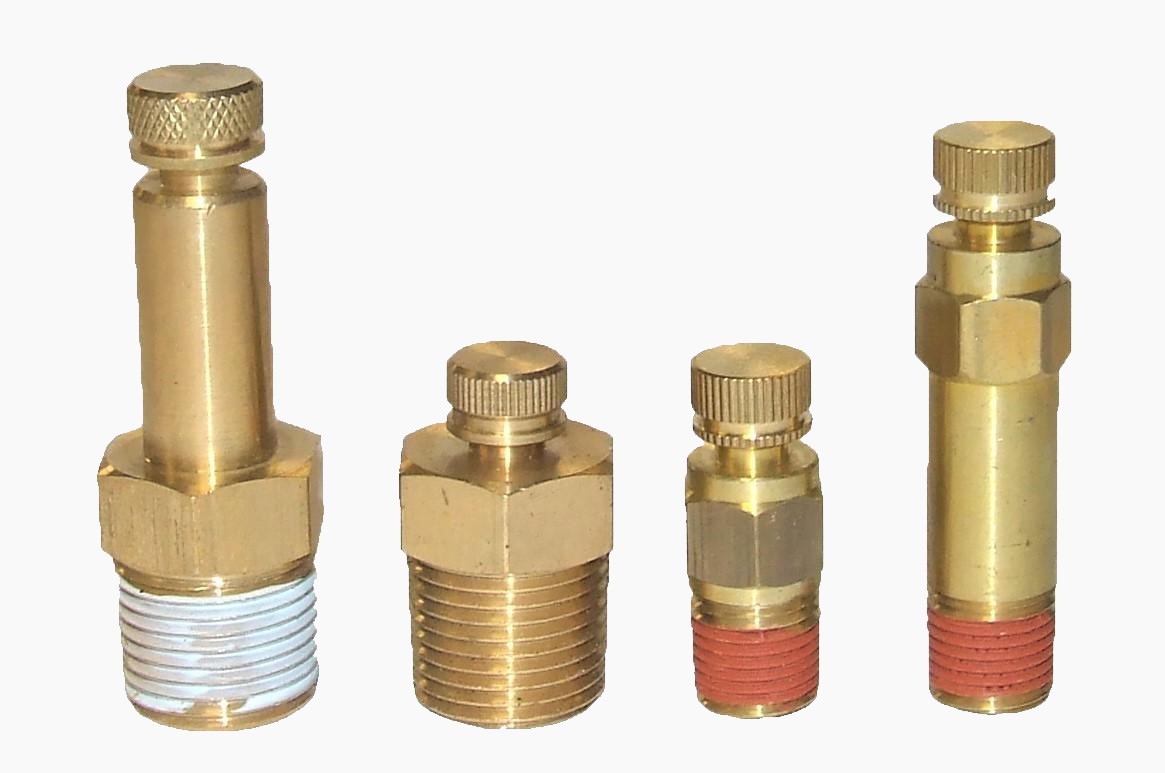

AV Series
| The Model AV is a manual air vent that is both knurled and slot operated. The model AV allows for manual purging of air from hydronic systems. The model AV has a blowout proof stem. Available in 1/4″ and 1/2″ sizes; regular length or extended for insulation purposes. | Not | |
DV Series
| The Model DV is a hose-end drain valve. The DV incorporates a mini ball for on and off functioning and has a removable cap where a 3/4″ garden hose can be connected. Available in 1/4″, 1/2″ and 3/4″ end connections. | Not | |
XH & XM Series
| The XH and XM are extended handles to allow for isolation and balancing capabilities through insulation. The extended handle is available with a groove for a memory stop (Model XM) or without (Model XH). | Not | |
MK100 & MK300 Series
| The MK is a portable metering kit with ranges from 0-100″ (Model MK100) and 0-300″ (MK300). The MK kit consists of (1) pressure differential meter (4.5″ face), (2) 10′ hoses (red/high and green/low), (2) service valves, (1) storage case and (1) mounting cable. | Not | |
Coil Kit Accessories – Hoses | Submittals | Flow Chart | |

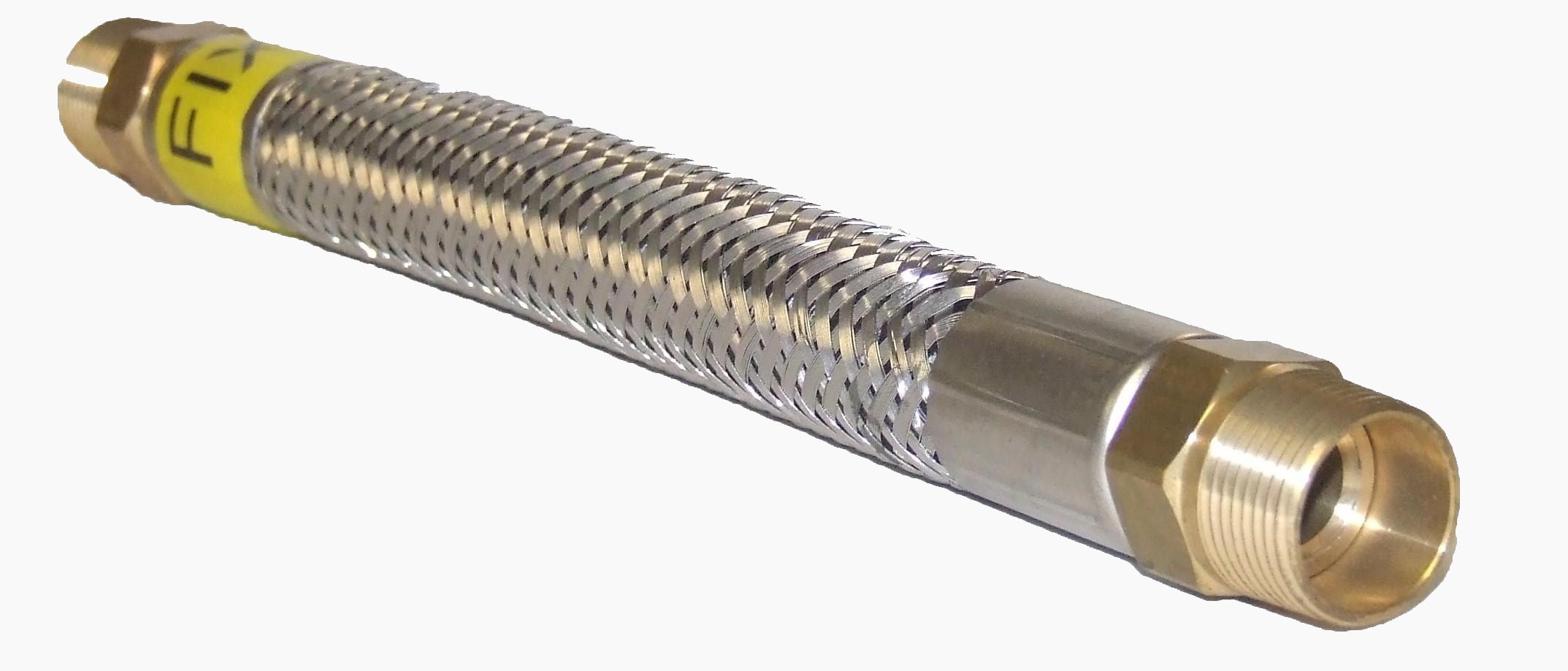

HSS Series

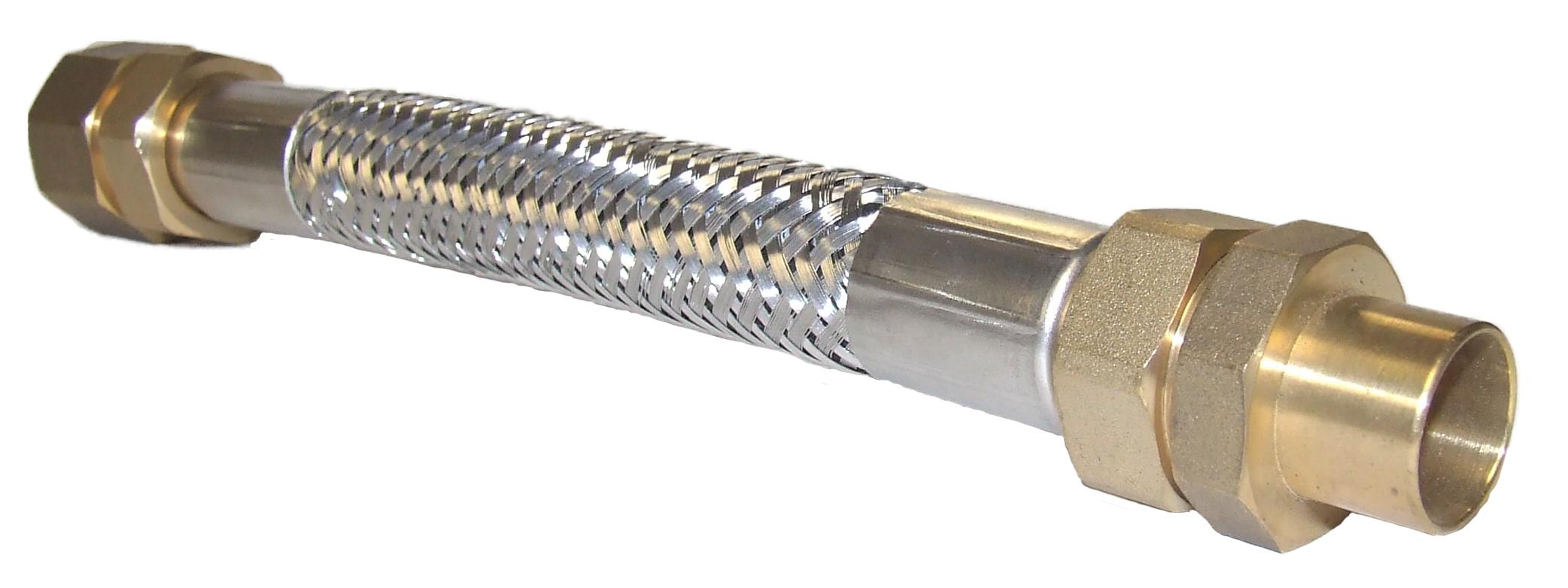

| The HSS is a stainless steel braided hose that is abrasion resistant. The flexible hose eases installation and is suitable for hot or cold applications. The HSS has a CPE (Chlorinated Polyethylene) inner tube for ½” – 1″ sizes with brass end connections and stainless steel ferrules. The 1¼” – 2″ sizes have an EPDM inner tube, plated steel end connections, and stainless steel ferrules. Model HSS is available in 12″, 18″, 24″, 30″, and 36″ lengths, with multiple end connection types. Custom lengths are also available upon request. | Not | |
HSA Series
| The HSA is a stainless steel braided hose that is abrasion resistant. The flexible hose eases installation and is suitable for hot or cold applications. The HSA has a CPE (Chlorinated Polyethylene) inner tube for ½” – 1″ sizes with brass end connections and stainless steel ferrules. The 1¼” – 2″ sizes have an EPDM inner tube, plated steel end connections, and stainless steel ferrules. Model HSA is available in 12″, 18″, 24″, 30″, and 36″ lengths, with multiple end connection types. Custom lengths are also available upon request. | Not | |
